ZENMUSE S1
Light Up The Night
Multiple Lighting Modes
Low Beam Mode
Provides a 15° field of view (FOV) [2] within a distance of 150 meters [1], covering the illumination range of a camera at 5x zoom or above. [3] This mode is suitable for most short-distance search and inspection needs
High Beam Mode
Utilizing the LEP (Laser Excited Phosphor) technology for enhanced light penetration, this mode offers a 4° field of view (FOV) [4] at a distance of 300 meters. [1] It covers the illumination range of a camera at 15x zoom or above, [3] enhancing efficiency in emergency rescue and public safety operations
Both On Mode
Engages both low and high beams simultaneously, delivering greater central illuminance than the High Beam mode alone. It maintains the FOV of the Low Beam mode while extending the observation distance up to 500 meters. [1] This mode offers maximum illumination coverage for comprehensive situational awareness
Strobe Mode
Zenmuse S1 supports high-frequency strobing to effectively alert and draw attention from target individuals, making it particularly useful for signaling in emergency rescue and public safety scenarios
Brightness Meets Energy Efficiency
Zenmuse S1 delivers a maximum central illuminance of 40 lux at 100 meters [5], providing ample lighting in dark environments to clearly distinguish details of the subjects. Additionally, the power consumption in the High Beam mode is only 24 W [6], reducing the power load on the drone and helping to maintain the flight time
Intelligent Beam Alignment
When mounted with the Zenmuse H30 Series on Matrice 400, Zenmuse S1 employs gimbal synchronization and software algorithms to automatically calibrate its optical center in real time, intelligently aligning with the camera view and effectively preventing light deviation
Flexible Mounting, Lightweight Build

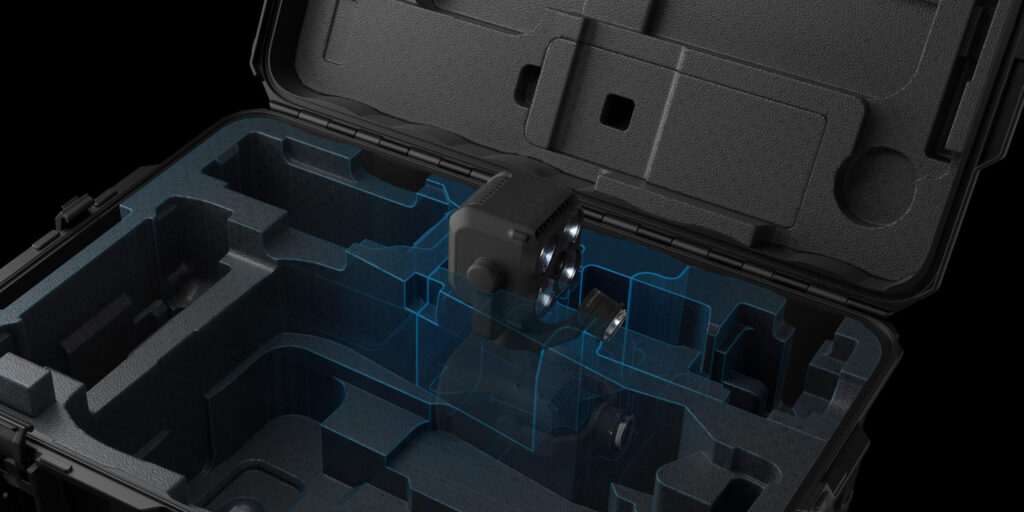

Zenmuse S1 can be mounted on any gimbal connector of Matrice 400, Matrice 350 RTK, or Matrice 300 RTK, accommodating various operational needs. Weighing only 0.76 kg, [9] it is compact and portable, and it also fits into the carrying case of Matrice 400
