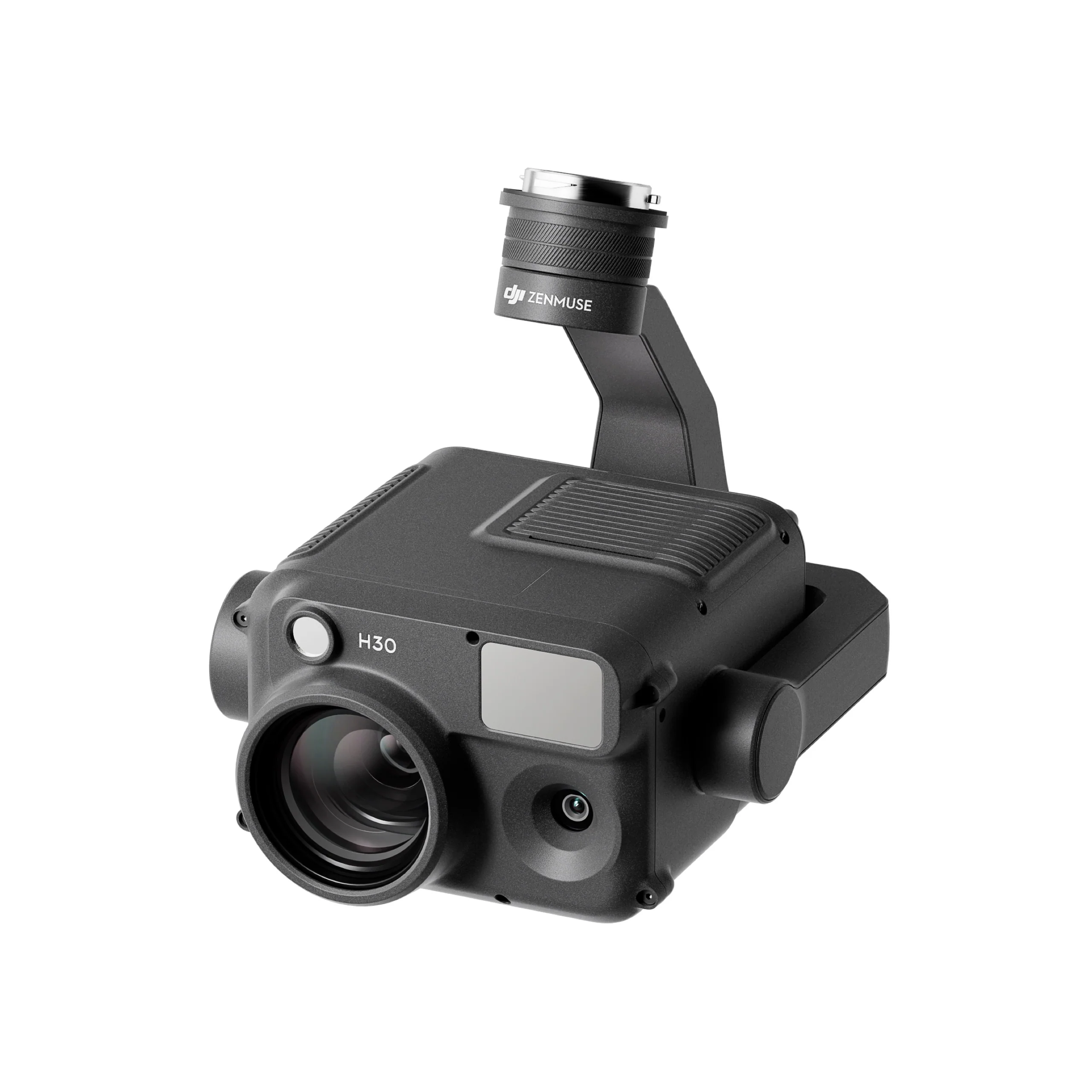

What is the Zenmuse H30 Series

The Zenmuse H30 Serhttps://youtu.be/ii519dVINq8ies is DJI’s flagship all‑weather, multi‑sensor payload for enterprise drones (e.g. Matrice series).
It integrates multiple sensors in one compact gimbal: a wide‑angle camera, zoom camera, infrared thermal camera (on H30T version), a laser rangefinder, plus an NIR auxiliary light — giving operators versatile imaging capabilities day and night.

Because of this, H30 is built for a wide set of professional tasks: public safety, infrastructure inspection, surveying, search & rescue, forestry, disaster response, and more.

 Cameras & Sensors — What’s Inside H30 / H30T

• Wide‑Angle Camera

• Sensor: 1/1.3‑inch CMOS, 48 MP effective pixels.

• Equivalent focal length: 24 mm; Field of view: ~82.1°.

• Video: up to 4K UHD (3840×2160) at 30 fps.

• Zoom Camera

• Sensor: 1/1.8‑inch CMOS, 40 MP effective pixels.

• Optical Zoom: up to 34×; Digital Zoom: up to 400×.

• Video: up to 4K UHD; good low-light / night‑scene performance.

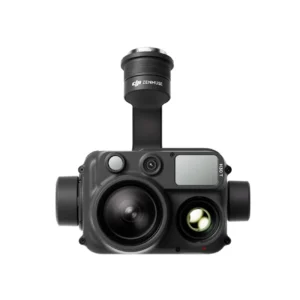

• Infrared Thermal Camera (only on H30T)

• Thermal sensor: uncooled VOx microbolometer.

• Thermal resolution: 1280 × 1024 px video.

• Thermal focal length: ~52 mm equivalent; Field of view ~45.2°.

• Laser Rangefinder

• Range: 3 m to 3000 m.

• Useful for precise distance measurements — helpful in inspections, mapping, or search/rescue.

• NIR Auxiliary Light

• Infrared auxiliary lighting for night / low‑light missions — allows better visibility even in dark conditions.

• Build & Specs

• Payload weight: ~ 920 g ± 5 g.

• Power consumption: H30 ~ 26 W; H30T ~ 28 W.

• Ingress protection: IP54 (dust and splash resistant) — suitable for field use.

• Compatible with enterprise drones like DJI Matrice 350 RTK / DJI Matrice 300 RTK (via SKYPORT).
