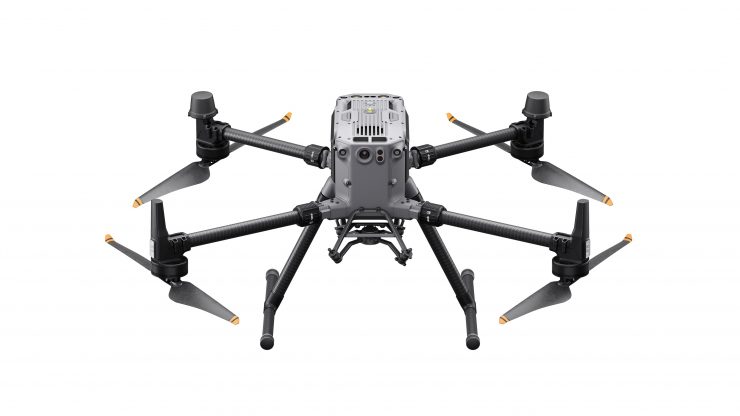

DJI Matrice 350 RTK — Detailed Summary

The DJI Matrice 350 RTK (M350 RTK) is a next-generation enterprise-level drone designed for professional operations such as mapping, surveying, inspection, public safety, and emergency response. It offers major improvements in flight performance, safety, payload capacity, and reliability compared to previous DJI enterprise drones.

Technical & Performance Highlights

• Flight Time: Up to 55 minutes (no payload).

• Payload Capacity: Up to 2.7 kg, suitable for LiDAR, thermal cameras, zoom cameras, multispectral sensors, etc.

• Max Takeoff Weight: ~9.2 kg.

• Max Operating Altitude: Up to 7000 m.

• Wind Resistance: Up to 12 m/s.

• Weather Protection: IP55 rating — dust and rain-resistant.

• Operating Temperature: –20°C to 50°C (–4°F to 122°F).

Key Features & Improvements

• DJI O3 Enterprise Transmission
  Provides 1080p HD video feed, triple-channel video, and extremely stable long-range connection with a quad-antenna system.

• TB65 Dual-Battery System

  • Supports hot-swapping (change batteries without powering off).

  • Up to 400 charge cycles, lowering long-term costs.

• Advanced Safety & Sensing System

  • 6-direction sensing & obstacle avoidance.

  • Option for 360° radar, detecting obstacles up to 30 m away.

  • Night-vision FPV camera for safe night operations.

  • Arm-lock detection for safer takeoff.

• Flexible Multi-Payload Support
  Compatible with high-end sensors such as:

  • Zenmuse H20/H20T/H30

  • Zenmuse P1 (photogrammetry)

  • Zenmuse L1 (LiDAR)

  • Thermal & multispectral sensors

  • Third-party payloads for custom missions

• Smart Mission Capabilities

  • Automated flight plans (waypoints, oblique, linear missions).

  • Terrain Follow & Smart Oblique for efficient mapping.

  • Integration with DJI Pilot 2, DJI Terra, and DJI FlightHub 2 for real-time cloud management, livestream, syncing, and dual-operator control.
