DJI FLYCART 30
Dynamic Aerial Delivery
DJI FlyCart 30 is here to deliver the goods. A long-distance heavy lifter with powerful signal and intelligence, DJI FlyCart 30 supports Cargo mode and Winch mode and ascends beyond traditional logistical limits to deliver a safe, economical, and efficient air transport solution.
Heavy Payloads, Long Distances
30 kg Max Payload [1]
28 km Flight Distance Without Payload [2]
16 km Flight Distance with Full Payload [3]
20 m/s Max Speed [4]
The first three indicators are measured in dual battery mode
Built for Extremes
6,000 m Max Flight Altitude [5]
-20° to 45° C (-4° to 113° F) Operating Temperature [6]
12 m/s Max Wind Speed Resistance [7]
Strong Signal
20 km Video Transmission with O3 [8]
4G Enhanced Video Transmission [9]
Dual Operator Mode [10]
High-Resolution FPV Gimbal Camera
Advanced Safety and Intelligence
IP55 Protection and Corrosion Resistance [11]
Radars, Binocular Vision, Intelligent Obstacle Sensing [12]
Dual Batteries and Parachute
Convenient Configurations
Foldable
70 L EPP Case [13]
Winch System
Fully-Automatic Operations
DJI Pilot 2
DJI DeliveryHub
Health Management System
Designed to Deliver
Send What's Needed, Where It's Needed
Heavy payload capacity and long flight distance overcome logistical limitations fornext-generation delivery.
30 kg
Max Payload (Dual Batteries) [1]
40 kg
Max Payload (Single Battery) [1]
28 km
Max Flight Distance Without
Payload (Dual Batteries) [2]
16 km
Max Flight Distance with Full
Payload (Dual Batteries) [3]
20 m/s
Max Flight Speed
(with Carbon Fiber Propellers) [4]
15 m/s
Cruising Speed[4]
All-Weather Performance
Withstand round-the-clock operations across extreme altitudes and weather conditions
6,000 m
Max Flight Altitude[5]
-20° to 45° C
(-4° to 113° F)
Operating Temperature[6]
IP55
Protection Rating[11]
12 m/s
Max Wind Speed Resistance[7]
Deliver With Safety and Reliability
Ensured safety from takeoff to landing
Intelligent Obstacle Sensing[12]
DJI FlyCart 30 is equipped with Front and Rear Phased Array Radars and a dual Binocular Vision system to achieve Intelligent Multidirectional Obstacle Sensing. [12] A built-in ADS-B signal receiver detects and warns of nearby crewed aircraft

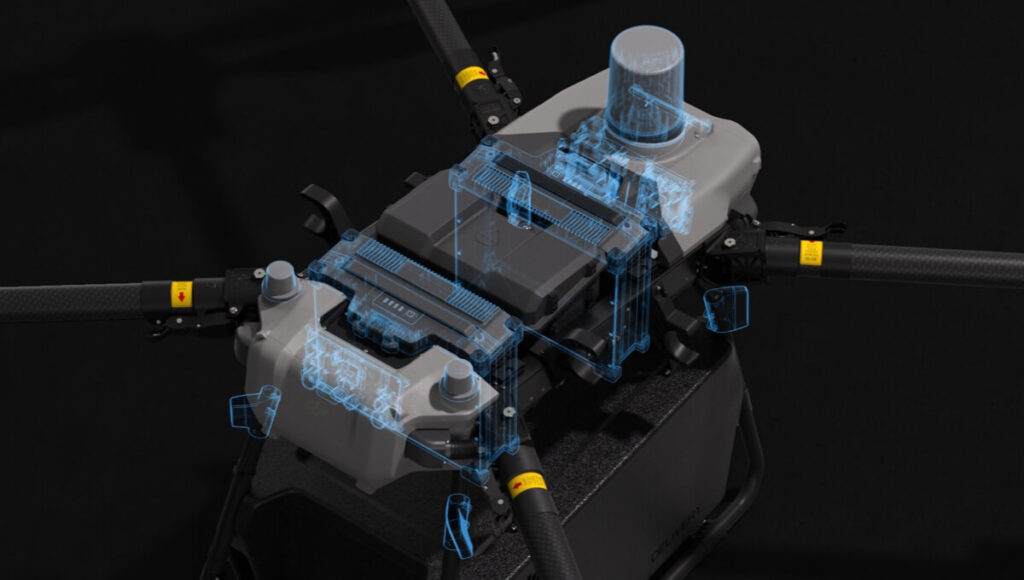

Multi-Level Redundancy
DJI FlyCart 30 is designed with high redundancy to guarantee flight safety even in harsh environments.
Powered by a dual battery system, if a single battery fails during flight, the other battery will keep the drone flying and ensure a safe return.
Strong Signal, Stable Transmission
DJI FlyCart 30 supports DJI O3 video transmission over up to 20 km. [8]
Its four-antenna transceiver system intelligently selects the optimal antenna to transmit signals and enhance anti-interference capabilities. Bolster connection and stability with a DJI Cellular Dongle, [15] which can work in tandem with DJI O3 video transmission. If O3 video transmission experiences interference, the 4G network can maintain signal stability and video transmission, improving flight safety even in complex environments.

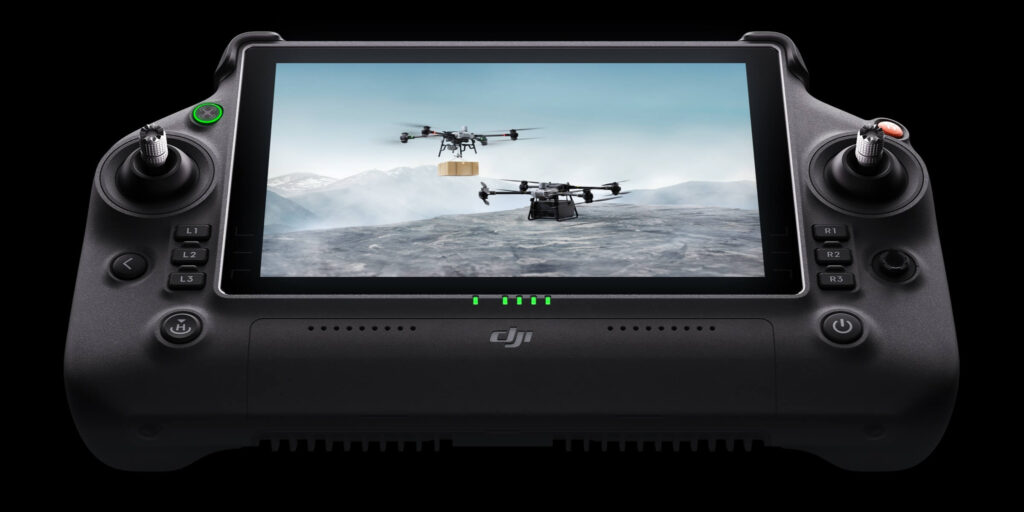

Smooth Effortless Control
DJI RC Plus has a 7-inch high-bright screen and supports Dual Operator mode[10]. This mode allows two operators to conveniently transfer control permissions to meet diverse operation requirements.

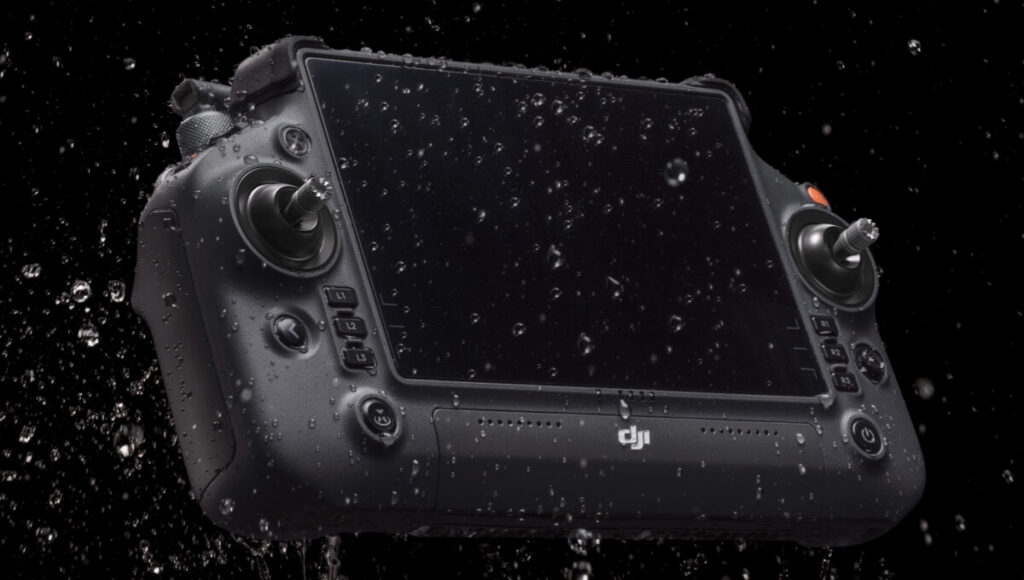

Built Ready for Harsh Environments
IP54 Protection[11]
Water and dust resistant
-20° to 50° C (-4° to 122° F)[6]
Capable in extreme environments

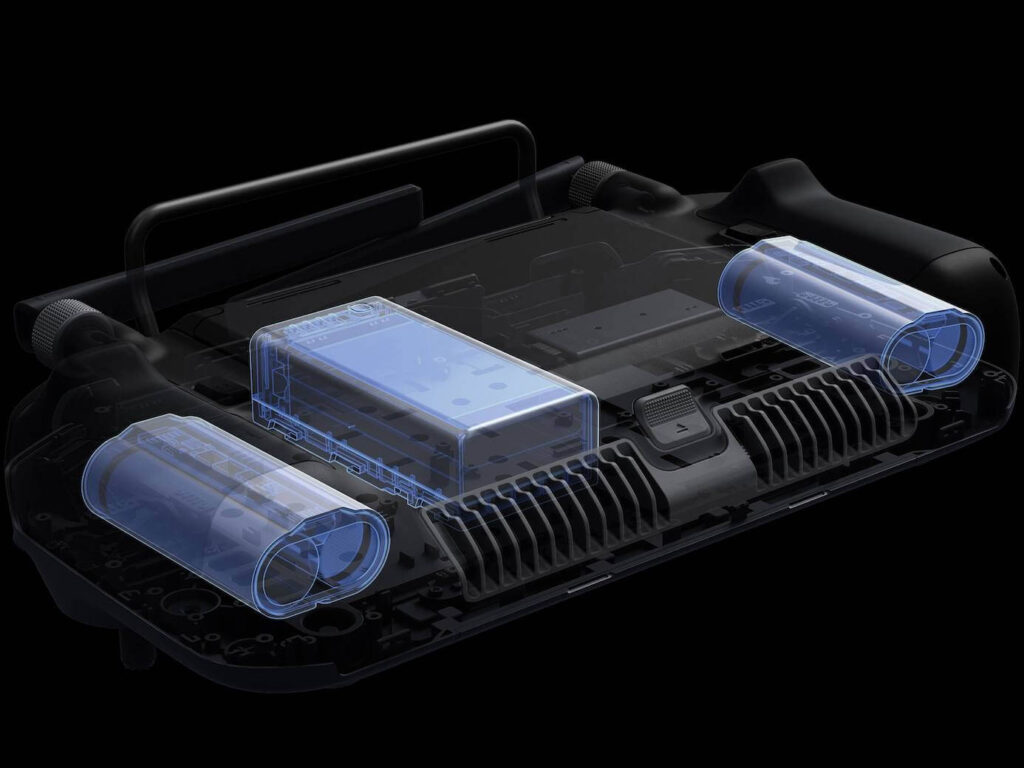

Stable Video Transmission and Long Battery Life
20 km Four-Antenna O3 Video Transmission[8]
4G Enhanced Video Transmission[9]
6-Hour Long Battery Life[16]
Choose Your Payload Configuration
Cargo mode or Winch mode facilitate payload delivery depending on its destination.
Cargo Mode: Streamlined and Steady
70 L Max Capacity[17]
30 kg Max Payload (Dual Batteries)[1]
40 kg Max Payload (Single Battery)[1]
DJI FlyCart 30 comes standard with an EPP case [13] that supports easy loading and unloading.
Weight and center-of-gravity detection ensures balanced cargo loading for safe and stable flight
Winch Mode: Flexible and Precise
30 kg Max Payload (Dual Batteries)[1]
40 kg Max Payload (Single Battery)[1]
0.8 m/s Max Cable Speed
20 m Max Cable Length
*Winch System Kit is sold separately
Winched cargo is delivered by a retractable cable which can be controlled either manually or automatically. Cargo releases automatically upon touchdown and does not require manual detachment, ensuring safe and precise delivery.
DJI FlyCart 30 can intelligently adjust its attitude to minimize cargo swing and improve stability. For extreme situations where hanging cargo gets trapped or tangled, you have the option to heat and cut the winch cable, freeing the drone

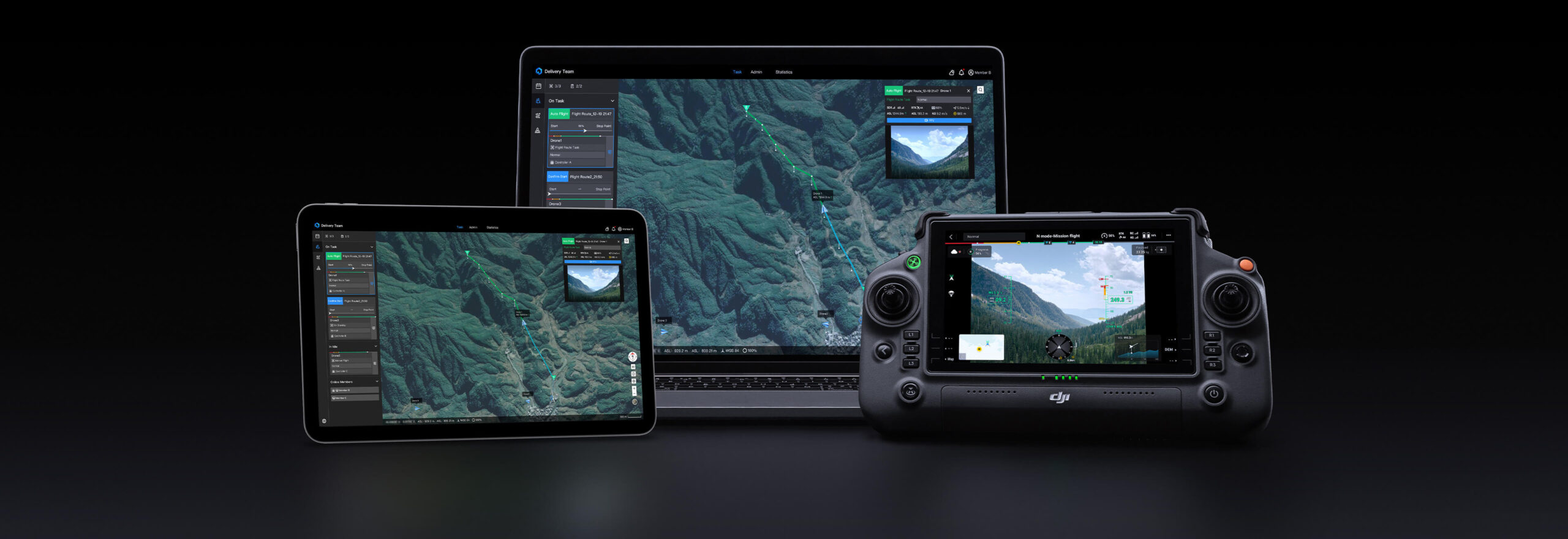

One-Stop Solution for Drone Delivery
DJI Pilot 2 and DJI DeliveryHub provide a powerful, efficient, and flexible one-stop solution for drone delivery management.

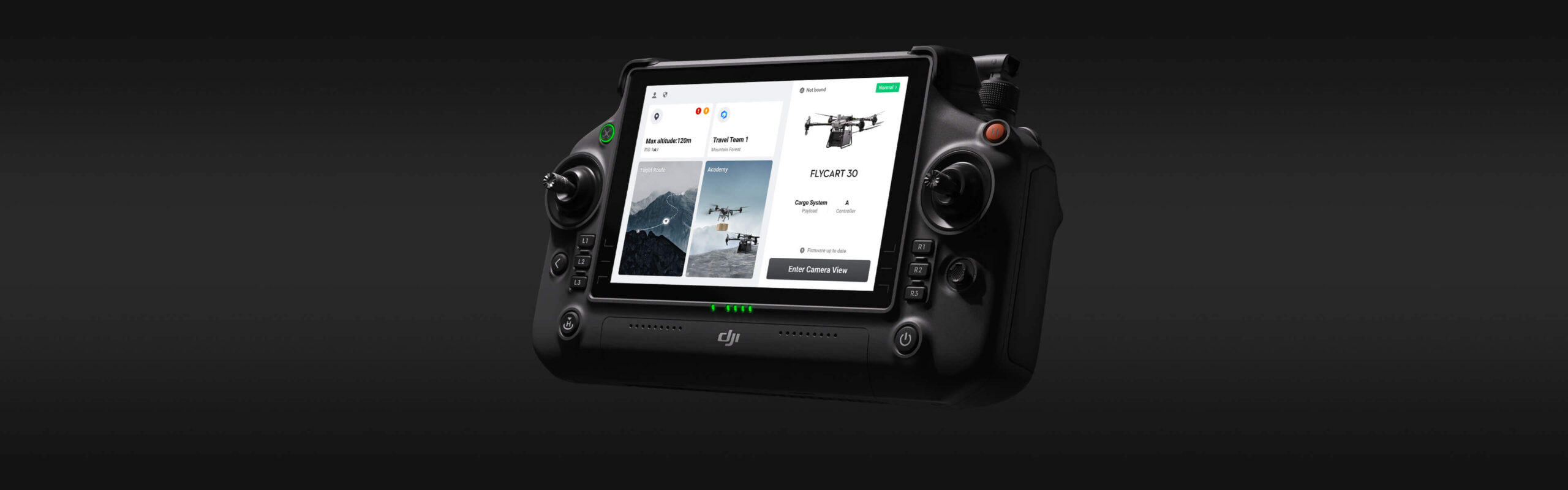

Simplified Delivery at Your Fingertips
DJI Pilot 2 displays real-time flight status, cargo status, and other interactive interfaces for efficient and safe operation with DJI FlyCart 30.
Real-Time Flight Safety Alerts
Check battery level, power status, and mileage in real time, and monitor the reachability of the destination point to ensure operation safety
Intelligent Assistance for Elevated Efficiency
Collaborate Across Multiple Terminals
DJI DeliveryHub is a one-stop air delivery management platform. It facilitates efficient operation planning, comprehensive operation status monitoring, centralized team resource management, and data collection and analysis.
Task Planning and Execution
Remotely create, schedule, and allocate tasks and devices.
Confirm safety check and one-tap takeoff.
Increase efficiency and automatically perform scheduled delivery tasks based on recorded flight routes.
Comprehensive Status Monitoring
Track drones and task status on a 2.5D Base Map[18].
Live view directly from the drone’s high resolution FPV gimbal camera to see the surrounding flight environment.
Receive alerts for abnormalities and take manual control to ensure flight safety.
Collaborate with teammates and share status notifications to multiple terminals.
Centralized Team Resource Management
Plan complex flight routes quickly based on a 2.5D Base Map[18].
Manage marked locations and alternate landing sites for efficient team collaboration and coordination.
Monitor drone health status, maintenance information, and DJI Care status.
View drone, route, and time statistics to evaluate efficiency and optimize future operations.
